FF27DRE71M4詳細信息
FF27DRE71M4
訂購熱線：13360667204
關鍵詞：一分鐘162轉減速機電機_FF27DRE71M4_FF27DM71M4
FF27DRE71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF27DRE71M4 | 56.62 | 0.37KW | 24.0rpm | 145N.m | 20.5Kg | 4080N | 0.90 |
| FF27DRE71M4 | 50.19 | 0.37KW | 28.0rpm | 128N.m | 20.5Kg | 4010N | 1.00 |
| FF27DRE71M4 | 46.78 | 0.37KW | 30.0rpm | 120N.m | 20.5Kg | 3970N | 1.10 |
| FF27DRE71M4 | 40.89 | 0.37KW | 34.0rpm | 105N.m | 20.5Kg | 3880N | 1.25 |
| FF27DRE71M4 | 38.33 | 0.37KW | 36.0rpm | 98N.m | 20.5Kg | 3840N | 1.35 |
| FF27DRE71M4 | 33.83 | 0.37KW | 41.0rpm | 87N.m | 20.5Kg | 3750N | 1.50 |
| FF27DRE71M4 | 29.56 | 0.37KW | 47.0rpm | 76N.m | 20.5Kg | 3650N | 1.70 |
| FF27DRE71M4 | 27.18 | 0.37KW | 51.0rpm | 70N.m | 20.5Kg | 3580N | 1.85 |
| FF27DRE71M4 | 23.25 | 0.37KW | 59.0rpm | 60N.m | 20.5Kg | 3460N | 2.20 |
| FF27DRE71M4 | 20.15 | 0.37KW | 68.0rpm | 52N.m | 20.5Kg | 3340N | 2.50 |
| FF27DRE71M4 | 18.84 | 0.37KW | 73.0rpm | 48N.m | 20.5Kg | 3290N | 2.70 |
| FF27DRE71M4 | 16.28 | 0.37KW | 85.0rpm | 42N.m | 20.5Kg | 3170N | 3.10 |
| FF27DRE71M4 | 13.84 | 0.37KW | 100rpm | 35N.m | 20.5Kg | 3040N | 3.70 |
| FF27DRE71M4 | 12.35 | 0.37KW | 112rpm | 32N.m | 20.5Kg | 2950N | 4.10 |
| FF27DRE71M4 | 10.55 | 0.37KW | 131rpm | 27N.m | 20.5Kg | 2820N | 4.80 |
| FF27DRE71M4 | 9.88 | 0.37KW | 140rpm | 25N.m | 20.5Kg | 2770N | 5.10 |
| FF27DRE71M4 | 9.40 | 0.37KW | 147rpm | 24N.m | 20.5Kg | 2710N | 5.40 |
| FF27DRE71M4 | 8.13 | 0.37KW | 170rpm | 21N.m | 20.5Kg | 2600N | 5.90 |
| FF27DRE71M4 | 6.91 | 0.37KW | 200rpm | 18N.m | 20.5Kg | 2490N | 6.40 |
| FF27DRE71M4 | 6.17 | 0.37KW | 224rpm | 16N.m | 20.5Kg | 2410N | 6.90 |
| FF27DRE71M4 | 5.27 | 0.37KW | 262rpm | 14N.m | 20.5Kg | 2300N | 7.40 |
| FF27DRE71M4 | 4.93 | 0.37KW | 280rpm | 13N.m | 20.5Kg | 2250N | 7.60 |
| FF27DRE71M4 | 4.16 | 0.37KW | 332rpm | 11N.m | 20.5Kg | 2140N | 8.20 |
FF27DM71M4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FF27DM71M4 | 56.62 | 0.37KW | 24.0rpm | 145N.m | 20.5Kg | 4080N | 0.90 |
| FF27DM71M4 | 50.19 | 0.37KW | 28.0rpm | 128N.m | 20.5Kg | 4010N | 1.00 |
| FF27DM71M4 | 46.78 | 0.37KW | 30.0rpm | 120N.m | 20.5Kg | 3970N | 1.10 |
| FF27DM71M4 | 40.89 | 0.37KW | 34.0rpm | 105N.m | 20.5Kg | 3880N | 1.25 |
| FF27DM71M4 | 38.33 | 0.37KW | 36.0rpm | 98N.m | 20.5Kg | 3840N | 1.35 |
| FF27DM71M4 | 33.83 | 0.37KW | 41.0rpm | 87N.m | 20.5Kg | 3750N | 1.50 |
| FF27DM71M4 | 29.56 | 0.37KW | 47.0rpm | 76N.m | 20.5Kg | 3650N | 1.70 |
| FF27DM71M4 | 27.18 | 0.37KW | 51.0rpm | 70N.m | 20.5Kg | 3580N | 1.85 |
| FF27DM71M4 | 23.25 | 0.37KW | 59.0rpm | 60N.m | 20.5Kg | 3460N | 2.20 |
| FF27DM71M4 | 20.15 | 0.37KW | 68.0rpm | 52N.m | 20.5Kg | 3340N | 2.50 |
| FF27DM71M4 | 18.84 | 0.37KW | 73.0rpm | 48N.m | 20.5Kg | 3290N | 2.70 |
| FF27DM71M4 | 16.28 | 0.37KW | 85.0rpm | 42N.m | 20.5Kg | 3170N | 3.10 |
| FF27DM71M4 | 13.84 | 0.37KW | 100rpm | 35N.m | 20.5Kg | 3040N | 3.70 |
| FF27DM71M4 | 12.35 | 0.37KW | 112rpm | 32N.m | 20.5Kg | 2950N | 4.10 |
| FF27DM71M4 | 10.55 | 0.37KW | 131rpm | 27N.m | 20.5Kg | 2820N | 4.80 |
| FF27DM71M4 | 9.88 | 0.37KW | 140rpm | 25N.m | 20.5Kg | 2770N | 5.10 |
| FF27DM71M4 | 9.40 | 0.37KW | 147rpm | 24N.m | 20.5Kg | 2710N | 5.40 |
| FF27DM71M4 | 8.13 | 0.37KW | 170rpm | 21N.m | 20.5Kg | 2600N | 5.90 |
| FF27DM71M4 | 6.91 | 0.37KW | 200rpm | 18N.m | 20.5Kg | 2490N | 6.40 |
| FF27DM71M4 | 6.17 | 0.37KW | 224rpm | 16N.m | 20.5Kg | 2410N | 6.90 |
| FF27DM71M4 | 5.27 | 0.37KW | 262rpm | 14N.m | 20.5Kg | 2300N | 7.40 |
| FF27DM71M4 | 4.93 | 0.37KW | 280rpm | 13N.m | 20.5Kg | 2250N | 7.60 |
| FF27DM71M4 | 4.16 | 0.37KW | 332rpm | 11N.m | 20.5Kg | 2140N | 8.20 |
FF27DRE71M4齒輪減速機馬達類型：
F..底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA..B底腳空心軸安裝平行軸—斜齒輪減速機
FV..B底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA..空心軸安裝平行軸—斜齒輪減速機
FV..花鍵空心軸安裝平行軸—斜齒輪減速機
FAF..是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF..是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ..是B14法蘭安裝平行軸—斜齒輪減速機
FVZ..是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF..是B5法蘭安裝平行軸—斜齒輪減速機
FH..B底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH..是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF..是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ..是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

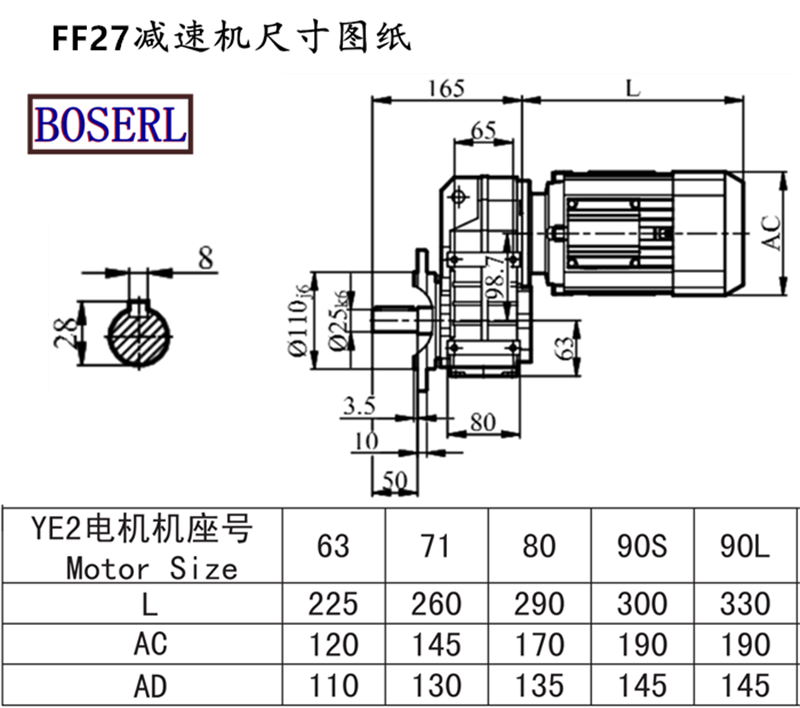

FF27DRE71M4齒輪減速機馬達安裝尺寸圖紙
FF27DRE71M4齒輪減速機馬達生產廠家，看廠請?zhí)崆叭祛A(yù)約三項異步調速電機減速機
關鍵詞:FF系列減速機與電機_三相異步調速電機減速機一套_三項異步調速電機減速器_調速減速電機_調速剎車馬達減速機_調速減速機_調速剎車電機減速機生產廠家
FF系列減速機型號：FF27減速機,FF37減速機,FF47減速機,FF67減速機,FF77減速機,FF87減速機,FF97減速機,FF107減速機,FF127減速機,FF157減速機
FF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 一分鐘162轉減速機電機 FF27DRE71M4 FF27DM71M4
